Google Pay EN 3DS flow for PAN_ONLY payload

Google Pay™ EN 3DS flow for PAN_ONLY payload

Please note, that due to PSD2 regulation, payments need to have SCA (Strong Customer Authentication). This also applies to Google Pay™. Google Pay™ in general is providing 2 types of payload containing payment data.

In case of CRYPTOGRAM_3DS payload, payment is already SCA authenticated on the customer device, payload contains proof of authentication and therefore there is no need for addition SCA in form of 3-D Secure.

In case of PAN_ONLY payload, payment data are not SCA authenticated. Therefore in order to avoid Soft Declines, 3-D Secure authentication is required.

Below guide describes how 3-D Secure 2.0 can be applied for Google Pay payments.

This guide can be applied for all Google Pay payments, because Paygate will dynamically recognize PAN_ONLY payloads and start the 3-D Secure process. In case of CRYPTOGRAM_3DS payload, 3-D Secure will not be started.

A 3-D Secure 2.0 payment sequence may comprise the following distinct activities:

Versioning
- Request ACS and DS Protocol Version(s) that correspond to card account range as well as an optional 3-D Secure Method URL

3-D Secure Method
- Connect the cardholder browser to the issuer ACS to obtain additional browser data
Authentication
- Submit authentication request to the issuer ACS
Challenge
- Challenge the card holder if mandated
Authorization
- Authorize the authenticated transaction with the acquirer

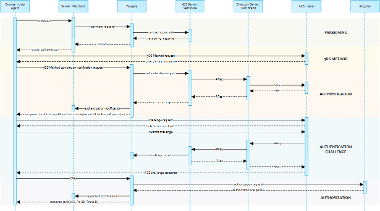

Server-2-Server Sequence Diagram

COO 6505 1000 20 2260556

Please note that the the communication between client and Access Control Server (ACS) is implemented through iframes. Thus, responses arrive in an HTML subdocument and you may establish correspondent event listeners in your root document.

Alternatively you could solely rely on asynchronous notifications delivered to your backend. In those cases you may have to consider methods such as long polling, SSE or websockets to update the client.

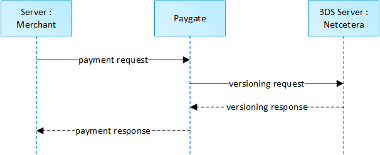

Payment Initiation

The initial request to Computop Paygate will be the same regardless of the underlying 3-D Secure Protocol.

COO 6505 1000 18 2260631

In order to start Google Pay™ 3-D Secure payment sequence please post the following key-value-pairs to https://www.computop-paygate.com/googlepay.aspx.

Call of interface: general parameters

To carry out a Google Pay payment via a Server-to-Server connection, please use the following URL:

https://www.computop-paygate.com/googlepay.aspx

Request Elements

Notice: For security reasons, Computop Paygate rejects all payment requests with formatting errors. Therefore, please use the correct data type for each parameter.

The following table describes the encrypted payment request parameters:

Key REST Format CND Description

MerchantID

BasicAuth.Username

ans..30

MerchantID, assigned by Computop. Additionally this parameter has to be passed in plain language too.

msgver

–––

ans..5

Computop Paygate Message version. Valid values:

Value

Description

2.0

With 3-D Secure 2.x a lot of additional data were required (e.g. browser-information, billing/shipping-address, account-info, ...) to improve authentication processing. To handle these information the JSON-objects have been put in place to handle such data. To indicate that these data are used the MsgVer has been implemented.

TransID

"transactionId": "..."

ans..64

TransactionID provided by you which should be unique for each payment

ReqId

"requestId": "..."

ans..32

To avoid double payments or actions (e.g. by ETM), enter an alphanumeric value which identifies your transaction and may be assigned only once. If the transaction or action is submitted again with the same ReqID, Computop Paygate will not carry out the payment or new action, but will just return the status of the original transaction or action.

Please note that the Computop Paygate must have a finalized transaction status for the first initial action (authentication/authorisation). This does not apply to 3-D Secure authentications that are terminated by a timeout. The 3-D Secure Timeout status does not count as a completed status in which the ReqID functionality on Paygate does not take effect. Submissions with identical ReqID for an open status will be processed regularly.

Notice: Please note that a ReqID is only valid for 12 month, then it gets deleted at the Paygate.

RefNr

"referenceNumber": "..."

Merchant’s unique reference number, which serves as payout reference in the acquirer EPA file. Please note, without the own shop reference delivery you cannot read out the EPA transaction and regarding the additional Computop settlement file (CTSF) we cannot add the additional payment data.

Details on supported format can be found below in payment specific section.

Only ASCII characters allowed, special characters ("Umlaute", diacritics) are not allowed and must be replaced by their ASCII-representation (e.g. ü → ue, é → e, ...).

Amount

"amount": { "value": ...}

n..10

Amount in the smallest currency unit (e.g. EUR Cent). Please contact the Computop Helpdesk, if you want to capture amounts <100 (smallest currency unit).

Currency

"amount": { "currency": "..."}

Currency, three digits DIN / ISO 4217, e.g. EUR, USD, GBP. Please find an overview here: A1 Currency table

Capture

"capture": {"auto": "Yes"}

"capture": {"manual": "Yes"}

"capture": ...

an..6

Determines the type and time of capture.

Capture Mode

Description

AUTO

Capturing immediately after authorisation (default value).

MANUAL

Capturing made by the merchant. Capture is normally initiated at time of delivery.

Delay in hours until the capture (whole number; 1 to 696).

OrderDesc

"order": {"description": "..."}

ans..768

Order description

browserInfo

"browserInfo": JSON

JSON

Accurate browser information are needed to deliver an optimized user experience. Required for 3-D Secure 2.0 transactions.

billToCustomer

"billing": JSON

JSON

The customer that is getting billed for the goods and / or services. Required unless market or regional mandate restricts sending this information.

URLNotify

"urls": {"notify": "..."}

ans..256

Complete URL which Paygate calls up in order to notify the shop about the payment result. The URL may be called up only via port 443. It may not contain parameters: Use the UserDataparameter instead.

In case of a merchant initiated recurring transaction the JSON objects (besides credentialOnFile and card), the URLNotify and TermURL are not mandatory parameters, because no 3-D Secure and no risk evaluation is done by the card issuing bank and the payment result is directly returned within the response.

Common notes:

Before follow-up actions (capture / credit / reversal) are carried out on an existing transaction, the first Notify must have been answered by the shop.
Fraudster may just copy the encrypted DATA-element which are sent to URLFailure and send the DATA to URLSuccess/URLNotify. Therefore ensure to check the "code"-value which indicates success/failure of the action. Only a result of "code=00000000" should be considered successful.

MAC

–––

an64

Hash Message Authentication Code (HMAC) with SHA-256 algorithm. Details can be found here:

TokenExt

"payment": {"googlePay": { "token": "..." }}

ans..1024

Google Pay Token as JSON string in the Base64 format

1
{
2
 "signature": "MEQCIC4z/QHSrzekRkkuk3vGYxBTBdNgEQl5XFHx0Wk5fFLIUAiB3+q227havAJdagfGZaMXbefhatdJE7Df2qrIoKDv1Og==",
3
 "protocolVersion": "ECv1",
4
 "signedMessage": "{"encryptedMessage":"bOYRmExGeCsBrFqESt7kd9O1FN+vQZf2KG0UNYC8jNA+VVf9nQeK7lDvU8k37cH+LOziJQkHNL2OxDHIk6GoRV1BrXprwBnAJR0O2VnCUH8lsqq0ELwemeqW364Ir8cU/hDFzWNp+38H25JVDAMExZBKodMMTzUXXgyO+s5jOyAl8jUhnAw3fTRPkefuYsE8NFK5tvcs4L29h87Zo7ot0/8XrUhXt9b/Fld1LEthkuPSN+K1eEFP7bseB6jjRdHnwYAdqiE3iOmh71pcDmNIyrlWRj74UJaszeerZW7DoZNx11oN7fouq/8fe1vklsr/e+y/RSG2nQMWg5yR/fMTfqCyabTDhJMvMM1Zhe91+dQ0/xi/zKRgsIhiongJUjYtoSNIjUHnMLRuVTKdjX50CCI1QOiBtr9h0bOLePhxw9cLYeU1KwCfYJyt28DBKCvaWFSbCl+dzNcZ9B83kv","ephemeralPublicKey":"BFUju73/IT/KqnB/nc0W3BaL3BXFybrbYaPiMCKXIcg78PbslwV7MRUq3SpWEDEJT6pakLCvf34412HbDGCpsa4\u003d","tag":"xIuCUWB2U6yWEfidsJpQaa+leU/kqS522JLOnrnk42g\u003d"}"
5
}

Channel

"channel": {"type": "..."}

a..10

Channel over which the order is processed. Allowed values are WEBSITE and MOBILE_APP.

The channel parameter is mandatory for RedSys. Please provide it if your processor is RedSys. For other processors, it is not obligatory to provide this information.

General parameters for credit card payments via socket connection

Please note the additional parameter for a specific credit card integration in the section "Specific parameters"

Response Elements (authentication)

The following table describes the result parameters with which the Computop Paygate responds to your system

pls. be prepared to receive additional parameters at any time and do not check the order of parameters

the key (e.g. MerchantId, RefNr) should not be checked case-sentive

Key	Format	CND	Description
mid	ans..30	M	MerchantID, assigned by Computop
PayID	an32	M	ID assigned by Paygate for the payment, e.g. for referencing in batch files as well as for capture or credit request.
XID	an32	M	ID for all single transactions (authorisation, capture, credit note) for one payment assigned by Paygate
TransID	ans..64	M	TransactionID provided by you which should be unique for each payment
RefNr		O	Reference number as given in request
Status	a..20	M	Status of the transaction. Values accepted: AUTHENTICATION_REQUEST PENDING FAILED
Description	ans..1024	M	Further details in the event that payment is rejected. Please do not use the Description but the Code parameter for the transaction status analysis!
Code	an8	M	Error code according to Paygate Response Codes (A4 Error codes)
UserData	ans..1024	O	If specified at request, Paygate forwards the parameter with the payment result to the shop.
card	JSON	M	Card data
versioningdata	JSON	M	The Card Range Data data element contains information that indicates the most recent EMV 3-D Secure version supported by the ACS that hosts that card range. It also may optionally contain the ACS URL for the 3-D Secure Method if supported by the ACS and the DS Start and End Protocol Versions which support the card range.
threeDSLegacy	JSON	C	Object containing the data elements required to construct the Payer Authentication request in case of a fallback to 3-D Secure 1.0.

Key

Format

CND

Description

mid

ans..30

MerchantID, assigned by Computop

PayID

an32

ID assigned by Paygate for the payment, e.g. for referencing in batch files as well as for capture or credit request.

XID

an32

ID for all single transactions (authorisation, capture, credit note) for one payment assigned by Paygate

TransID

ans..64

TransactionID provided by you which should be unique for each payment

RefNr

Reference number as given in request

Status

a..20

Status of the transaction.

Values accepted:

AUTHENTICATION_REQUEST
PENDING
FAILED

Description

ans..1024

Further details in the event that payment is rejected. Please do not use the Description but the Code parameter for the transaction status analysis!

Code

an8

Error code according to Paygate Response Codes (A4 Error codes)

UserData

ans..1024

If specified at request, Paygate forwards the parameter with the payment result to the shop.

card

JSON

Card data

versioningdata

JSON

The Card Range Data data element contains information that indicates the most recent EMV 3-D Secure version supported by the ACS that hosts that card range. It also may optionally contain the ACS URL for the 3-D Secure Method if supported by the ACS and the DS Start and End Protocol Versions which support the card range.

threeDSLegacy

JSON

Object containing the data elements required to construct the Payer Authentication request in case of a fallback to 3-D Secure 1.0.

versioningData

The versioningData object will indicate the EMV 3-D Secure protocol versions (i.e. 2.1.0 or higher) that are supported by Access Control Server of the issuer.

If the corresponding protocol version fields are NULL it means that the BIN range of card issuer is not registered for 3-D Secure 2.0 and a fallback to 3-D Secure 1.0 is required for transactions that are within the scope of PSD2 SCA.

When parsing versioningData please also refer to the subelement errorDetails which will specify the reason if some fields are not pupoluated (e.g. Invalid cardholder account number passed, not available card range data, failure in encoding/serialization of the 3-D Secure Method data etc)

BASEURL= https://www.computop-paygate.com/.

1
{
2
	"threeDSServerTransID": "14dd844c-b0fc-4dfe-8635-366fbf43468c",
3
	"acsStartProtocolVersion": "2.1.0",
4
	"acsEndProtocolVersion": "2.1.0",
5
	"dsStartProtocolVersion": "2.1.0",
6
	"dsEndProtocolVersion": "2.1.0",
7
	"threeDSMethodURL": "http://www.acs.com/script",
8
	"threeDSMethodDataForm": "eyJ0aHJlZURTTWV0aG9kTm90aWZpY2F0aW9uVVJMIjoiaHR0cHM6Ly93d3cuY29tcHV0b3AtcGF5Z2F0ZS5jb20vY2JUaHJlZURTLmFzcHg_YWN0aW9uPW10aGROdGZuIiwidGhyZWVEU1NlcnZlclRyYW5zSUQiOiIxNGRkODQ0Yy1iMGZjLTRkZmUtODYzNS0zNjZmYmY0MzQ2OGMifQ==",
9
	"threeDSMethodData": {
10
		"threeDSMethodNotificationURL": "BASEURL/cbThreeDS.aspx?action=mthdNtfn",
11
		"threeDSServerTransID": "14dd844c-b0fc-4dfe-8635-366fbf43468c"
12
	}
13
}

3-D Secure Method

The 3-D Secure Method allows for additional browser information to be gathered by an ACS prior to receipt of the authentication request message (AReq) to help facilitate the transaction risk assessment. Support of 3-D Secure Method is optional and at the discretion of the issuer.

The versioningData object contains a value for threeDSMethodURL. The merchant is supposed to invoke the 3-D Secure Method via a hidden HTML iframe in the cardholder browser and send a form with a field named threeDSMethodData via HTTP POST to the ACS 3-D Secure Method URL.

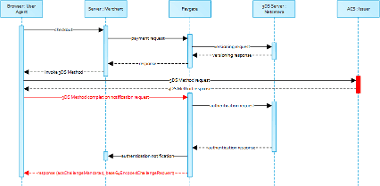

3-D Secure Method: threeDSMethodURL

COO 6505 1000 19 2260550

Please note that the threeDSMethodURL will be populated by Computop Paygate if the issuer does not support the 3-D Secure Method. The 3-D Secure Method Form Post as outlined below must be performed independently from whether it is supported by the issuer. This is necessary to facilitate direct communication between the browser and Computop Paygate in case of a mandated challenge or a frictionless flow.

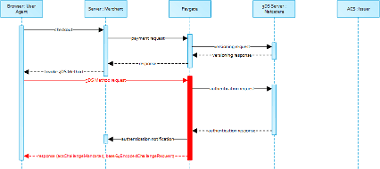

3-D Secure Method: No issuer threeDSMethodURL

COO 6505 1000 17 2260578

3-D Secure Method Form Post

1
<form name="frm" method="POST" action="Rendering URL">
2
    <input type="hidden" name="threeDSMethodData" value="eyJ0aHJlZURTU2VydmVyVHJhbnNJRCI6IjNhYzdjYWE3LWFhNDItMjY2My03OTFiLTJhYzA1YTU0MmM0YSIsInRocmVlRFNNZXRob2ROb3RpZmljYXRpb25VUkwiOiJ0aHJlZURTTWV0aG9kTm90aWZpY2F0aW9uVVJMIn0">
3
</form>

The ACS will interact with the Cardholder browser via the HTML iframe and then store the applicable values with the 3-D Secure Server Transaction ID for use when the subsequent authentication message is received containing the same 3-D Secure Server Transaction ID.

Netcetera 3DS Web SDK

You may use the operations init3DSMethod or createIframeAndInit3DSMethod at your discreation from the nca3DSWebSDK in order to iniatiate the 3-D Secure Method. Please refer to the Integration Manual at https://mpi.netcetera.com/3dsserver/doc/current/integration.html#Web_Service_API.

Once the 3-D Secure Method is concluded the ACS will instruct the cardholder browser through the iFrame response document to submit as a hidden form field to the 3-D Secure Method Notification URL.

ACS Response Document

1
<!DOCTYPE html>
2
<html lang="en">
3
<head>
4
    <meta charset="UTF-8"/>
5
    <title>Identifying...</title>
6
</head>
7
<body>
8
<script>
9
    var tdsMethodNotificationValue = 'eyJ0aHJlZURTU2VydmVyVHJhbnNJRCI6ImUxYzFlYmViLTc0ZTgtNDNiMi1iMzg1LTJlNjdkMWFhY2ZhMiJ9';
10

11
    var form = document.createElement("form");
12
    form.setAttribute("method", "post");
13
    form.setAttribute("action", "notification URL");
14

15
    addParameter(form, "threeDSMethodData", tdsMethodNotificationValue);
16

17
    document.body.appendChild(form);
18
    form.submit();
19

20
    function addParameter(form, key, value) {
21
        var hiddenField = document.createElement("input");
22
        hiddenField.setAttribute("type", "hidden");
23
        hiddenField.setAttribute("name", key);
24
        hiddenField.setAttribute("value", value);
25
        form.appendChild(hiddenField);
26
    }
27
</script>
28
</body>
29
</html>

3-D Secure Method Notification Form

1
<form name="frm" method="POST" action="3DS Method Notification URL">
2
    <input type="hidden" name="threeDSMethodData" value="eyJ0aHJlZURTU2VydmVyVHJhbnNJRCI6ImUxYzFlYmViLTc0ZTgtNDNiMi1iMzg1LTJlNjdkMWFhY2ZhMiJ9">
3
</form>

Please note that the threeDSMethodNotificationURL as embedded in the Base64 encoded threeDSMethodData value points to Computop Paygate and must not be modified. The merchant notification is delivered to the URLNotify as provided in the original request or as configured for the MerchantID in Computop Paygate.

Authentication

If 3-D Secure Method is supported by the issuer ACS and was invoked by the merchant Computop Paygate will automatically continue with the authentication request once the 3-D Secure Method has completed (i.e. 3-D Secure Method Notification).

The authentication result will be transferred via HTTP POST to the URLNotify. It may indicate that the Cardholder has been authenticated, or that further cardholder interaction (i.e. challenge) is required to complete the authentication.

In case a cardholder challenge is deemed necessaryComputop Paygate will transfer a JSON object within the body of HTTP browser response with the elements acsChallengeMandated, challengeRequest, base64EncodedChallengeRequest and acsURL. Otherwise, in a frictionless flow, Computop Paygate will automatically continue and respond to the cardholder browser once the authorization completed.

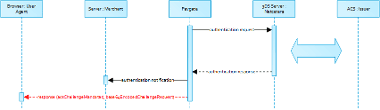

Cardholder Challenge: Browser Response

COO 6505 1000 16 2260632

Browser Challenge Response

Data Elements

Key	Format	CND	Description
acsChallengeMandated	boolean	M	Indication of whether a challenge is required for the transaction to be authorised due to local/regional mandates or other variable: true → Challenge is mandated by local/regional regulations false → Challenge is not mandated by local/regional regulations, but is deemed necessary by the ACS
challengeRequest	object	M	Challenge request object
base64EncodedChallengeRequest	string	M	Base64-encoded Challenge Request object
acsURL	string	M	Fully qualified URL of the ACS to be used to post the Challenge Request

Key

Format

CND

Description

acsChallengeMandated

boolean

Indication of whether a challenge is required for the transaction to be authorised due to local/regional mandates or other variable:

true → Challenge is mandated by local/regional regulations
false → Challenge is not mandated by local/regional regulations, but is deemed necessary by the ACS

challengeRequest

object

Challenge request object

base64EncodedChallengeRequest

string

Base64-encoded Challenge Request object

acsURL

string

Fully qualified URL of the ACS to be used to post the Challenge Request

Schema: Browser Challenge Response

1
{
2
	"$schema": "http://json-schema.org/draft-07/schema#",
3
	"type": "object",
4
	"properties": {
5
		"acsChallengeMandated": {"type": "boolean"},
6
		"challengeRequest": {"type": "object"},
7
		"base64EncodedChallengeRequest": {"type": "string"},
8
		"acsURL": {"type": "string"}
9
	},
10
	"required": ["acsChallengeMandated", "challengeRequest", "base64EncodedChallengeRequest", "acsURL"],
11
	"additionalProperties": false
12
}

Sample: Browser Challenge Response

1
{
2
	"acsChallengeMandated": false,
3
	"challengeRequest": {
4
		"threeDSServerTransID": "8a880dc0-d2d2-4067-bcb1-b08d1690b26e",
5
		"acsTransID": "d7c1ee99-9478-44a6-b1f2-391e29c6b340",
6
		"messageType": "CReq",
7
		"messageVersion": "2.1.0",
8
		"challengeWindowSize": "01",
9
		"messageExtension": [
10
			{
11
				"name": "emvcomsgextInChallenge",
12
				"id": "tc8Qtm465Ln1FX0nZprA",
13
				"criticalityIndicator": false,
14
				"data": "messageExtensionDataInChallenge"
15
			}
16
		]
17
	},
18
	"base64EncodedChallengeRequest": "base64-encoded-challenge-request",
19
	"acsURL": "acsURL-to-post-challenge-request"
20
}

Authentication Notification

The data elements of the authentication notification are listed in the table below.

Key	Format	CND	Description
mid	ans..30	M	MerchantID, assigned by Computop
PayID	an32	M	ID assigned by Paygate for the payment, e.g. for referencing in batch files as well as for capture or credit request.
XID	an32	M	ID for all single transactions (authorisation, capture, credit note) for one payment assigned by Paygate
TransID	ans..64	M	TransactionID provided by you which should be unique for each payment
Code	an8	M	Error code according to Paygate Response Codes (A4 Error codes)
MAC	an64	M	Hash Message Authentication Code (HMAC) with SHA-256 algorithm. Details can be found here: HMAC Authentication (Request) HMAC Authentication (Notify)
authenticationResponse	JSON	M	Response object in return of the authentication request with the ACS

Key

Format

CND

Description

mid

ans..30

MerchantID, assigned by Computop

PayID

an32

ID assigned by Paygate for the payment, e.g. for referencing in batch files as well as for capture or credit request.

XID

an32

ID for all single transactions (authorisation, capture, credit note) for one payment assigned by Paygate

TransID

ans..64

TransactionID provided by you which should be unique for each payment

Code

an8

Error code according to Paygate Response Codes (A4 Error codes)

MAC

an64

Hash Message Authentication Code (HMAC) with SHA-256 algorithm. Details can be found here:

authenticationResponse

JSON

Response object in return of the authentication request with the ACS

Browser Challenge

If a challenge is deemed necessary (see challengeRequest) the browser challenge will occur within the cardholder browser. To create a challenge it is required to post the value base64EncodedChallengeRequest via an HTML iframe to the ACS URL.

Challenge Request

1
<form name="challengeRequestForm" method="post" action="acsChallengeURL">
2
	<input type="hidden" name="creq" value="ewogICAgInRocmVlRFNTZXJ2ZXJUcmFuc0lEIjogIjhhODgwZGMwLWQyZDItNDA2Ny1iY2IxLWIwOGQxNjkwYjI2ZSIsCiAgICAiYWNzVHJhbnNJRCI6ICJkN2MxZWU5OS05NDc4LTQ0YTYtYjFmMi0zOTFlMjljNmIzNDAiLAogICAgIm1lc3NhZ2VUeXBlIjogIkNSZXEiLAogICAgIm1lc3NhZ2VWZXJzaW9uIjogIjIuMS4wIiwKICAgICJjaGFsbGVuZ2VXaW5kb3dTaXplIjogIjAxIiwKICAgICJtZXNzYWdlRXh0ZW5zaW9uIjogWwoJCXsKCQkJIm5hbWUiOiAiZW12Y29tc2dleHRJbkNoYWxsZW5nZSIsCgkJCSJpZCI6ICJ0YzhRdG00NjVMbjFGWDBuWnByQSIsCgkJCSJjcml0aWNhbGl0eUluZGljYXRvciI6IGZhbHNlLAoJCQkiZGF0YSI6ICJtZXNzYWdlRXh0ZW5zaW9uRGF0YUluQ2hhbGxlbmdlIgoJCX0KICAgIF0KfQ==">
3
</form>

You may use the operations init3DSChallengeRequest or createIFrameAndInit3DSChallengeRequest from the nca3DSWebSDK in order submit the challenge message through the cardholder browser.

Init 3-D Secure Challenge Request - Example

1
<!DOCTYPE html>
2
<html lang="en">
3
<head>
4
    <meta charset="UTF-8">
5
    <script src="nca-3ds-web-sdk.js" type="text/javascript"></script>
6
    <title>Init 3-D Secure Challenge Request - Example</title>
7
</head>
8
<body>
9
<!-- This example will show how to initiate Challenge Reqeuests for different window sizes. -->
10
<div id="frameContainer01"></div>
11
<div id="frameContainer02"></div>
12
<div id="frameContainer03"></div>
13
<div id="frameContainer04"></div>
14
<div id="frameContainer05"></div>
15
<iframe id="iframeContainerFull" name="iframeContainerFull" width="100%" height="100%"></iframe>
16

17
<script type="text/javascript">
18
    // Load all containers
19
    iFrameContainerFull = document.getElementById('iframeContainerFull');
20
    container01 = document.getElementById('frameContainer01');
21
    container02 = document.getElementById('frameContainer02');
22
    container03 = document.getElementById('frameContainer03');
23
    container04 = document.getElementById('frameContainer04');
24
    container05 = document.getElementById('frameContainer05');
25

26

27
    // nca3DSWebSDK.init3DSChallengeRequest(acsUrl, creqData, container);
28
    nca3DSWebSDK.init3DSChallengeRequest('http://example.com', 'base64-encoded-challenge-request', iFrameContainerFull);
29

30
    // nca3DSWebSDK.createIFrameAndInit3DSChallengeRequest(acsUrl, creqData, challengeWindowSize, frameName, rootContainer, callbackWhenLoaded);
31
    nca3DSWebSDK.createIFrameAndInit3DSChallengeRequest('http://example.com', 'base64-encoded-challenge-request', '01', 'threeDSCReq01', container01);
32
    nca3DSWebSDK.createIFrameAndInit3DSChallengeRequest('http://example.com', 'base64-encoded-challenge-request', '02', 'threeDSCReq02', container02);
33
    nca3DSWebSDK.createIFrameAndInit3DSChallengeRequest('http://example.com', 'base64-encoded-challenge-request', '03', 'threeDSCReq03', container03);
34
    nca3DSWebSDK.createIFrameAndInit3DSChallengeRequest('http://example.com', 'base64-encoded-challenge-request', '04', 'threeDSCReq04', container04);
35
    nca3DSWebSDK.createIFrameAndInit3DSChallengeRequest('http://example.com', 'base64-encoded-challenge-request', '05', 'threeDSCReq05', container05, () => {
36
        console.log('Iframe loaded, form created and submitted');
37
    });
38
</script>
39

40
</body>
41
</html>

Once the cardholder challenge is completed, was cancelled or timed out the ACS will instruct the browser to post the results to the notfication URL as specified in the challenge request and to send a Result Request (RReq) via the Directory Server to the 3-D Secure Server.

Please note that the notification URL submited in the challenge request points to Computop Paygate and must not be changed.

Authorization

After successful cardholder authentication or proof of attempted authentication/verification is provided Computop Paygate will automatically continue with the payment authorization.

In case the cardholder authentication was not successful or proof of attempted authentication/verification can not be provided Computop Paygate will not continue with an authorization request.

In both cases Paygate will deliver a notification with the authentication result to the merchant specified with the data elements as listed in the table below.

Payment Notification

In case of using Key-Value-Pair API

The following table gives the result parameters which Computop Paygate transmits to URLSuccess or URLFailure and URLNotify. If you have specified the Response=encrypt parameter, the following parameters are sent Blowfish encrypted to your system:

pls. be prepared to receive additional parameters at any time and do not check the order of parameters

the key (e.g. MerchantId, RefNr) should not be checked case-sentive

Key

Format

CND

Description

mid

ans..30

MerchantID, assigned by Computop

msgver

ans..5

Computop Paygate Message version. Valid values:

Value

Description

2.0

PayID

an32

ID assigned by Paygate for the payment, e.g. for referencing in batch files as well as for capture or credit request.

XID

an32

ID for all single transactions (authorisation, capture, credit note) for one payment assigned by Paygate

TransID

ans..64

TransactionID provided by you which should be unique for each payment

schemeReferenceID

ans..64

Card scheme specific transaction ID required for subsequent credential-on-file payments, delayed authorizations and resubmissions.

Mandatory: CredentialOnFile – initial false – unscheduled MIT / recurring

schemeReferenceID is returned for 3DS2-payments. In case of fallback to 3DS1 you will also need to check for TransactionId.

The schemeReferenceID is a unique identifier generated by the card brands and as a rule Computop merchants can continue to use the SchemeReferenceIDs for subscription plans that were created while using another PSP environment / Paygate MerchantID / Acquirer ContractID / Acquirer.

TrxTime

an21

Transaction time stamp in format DD.MM.YYYY HH:mm:ssff

Status

a..20

Status of the transaction.

Values accepted:

Authorized
OK (Sale)
PENDING
FAILED

In case of Authentication-only the Status will be either OK or FAILED.

Description

ans..1024

Further details in the event that payment is rejected. Please do not use the Description but the Code parameter for the transaction status analysis!

Code

an8

Error code according to Paygate Response Codes (A4 Error codes)

MAC

an64

Hash Message Authentication Code (HMAC) with SHA-256 algorithm. Details can be found here:

card

JSON

Card data

ipinfo

JSON

Object containing IP information

threedsdata

JSON

Authentication data

resultsresponse

JSON

In case the authentication process included a cardholder challenge additional information about the challenge result will be provided.

externalPaymentData

JSON

Optional additional data from acquirer/issuer/3rd party for authorization.

PCNr

n16

Pseudo Card Number: Random number generated by Computop Paygate which represents a genuine credit card number. The pseudo card number (PCN) starts with 0 and the last 3 digits correspond to those of the real card number. The PCN can be used like a genuine card number for authorisation, capture and credits.

PCNr is a response value from Computop Paygate and is sent as CCNr in Request or part of card-JSON

Browser Payment Response

Additionally the JSON formatted data elements as listed below are transferred in the HTTP response body to the cardholder browser. Please note that the data elements (i.e. MID, Len, Data) are base64 encoded.

Data Elements

Key	Format	CND	Description
mid	ans..30	M	MerchantID, assigned by Computop
Len	integer	M	Length of the unencrypted Data string
Data	string	M	Blowfish encrypted string containing a JSON object with MID, PayID and TransID

Key

Format

CND

Description

mid

ans..30

MerchantID, assigned by Computop

Len

integer

Length of the unencrypted Data string

Data

string

Blowfish encrypted string containing a JSON object with MID, PayID and TransID

Schema

1
{
2
	"$schema": "http://json-schema.org/draft-07/schema#",
3
	"type": "object",
4
	"properties": {
5
		"MID": {
6
			"type": "string"
7
		},
8
		"Len": {
9
			"type": "integer"
10
		},
11
		"Data": {
12
			"type": "string"
13
		}
14
	},
15
	"required": ["MID", "Len", "Data"],
16
	"additionalProperties": false
17
}

Merchants are supposed to forward these data elements to their server for decryption and mapping agianst the payment notification. Based on the payment results the merchant server may deliver an appropriate response to the cardholder browser (e.g. success page).

Decrypted Data

Key	Format	CND	Description
mid	ans..30	M	MerchantID, assigned by Computop
PayID	an32	M	ID assigned by Paygate for the payment, e.g. for referencing in batch files as well as for capture or credit request.
TransID	ans..64	M	TransactionID provided by you which should be unique for each payment

Key

Format

CND

Description

mid

ans..30

MerchantID, assigned by Computop

PayID

an32

ID assigned by Paygate for the payment, e.g. for referencing in batch files as well as for capture or credit request.

TransID

ans..64

TransactionID provided by you which should be unique for each payment

Sample decrypted Data

1
MID=YourMID&PayID=PayIDassignedbyPlatform&TransID=YourTransID
