Click to Pay | Computop Documents

About Click to Pay

General information about Click to Pay

VISA Click To Pay is an implementation of the next generation of remote commerce specification – Secure Remote Commerce (SRC), introduced by EMVCo in 2019 and designed to create an ecommerce checkout experience that delivers the same security, convenience and control as offered in the physical world. Consumers can checkout quickly and securely when they see the Click to Pay icon. Currently SRC is adopted by VISA, MC, AMEX and Discover under the umbrella product "Click To Pay".

Notice: Currently only VISA and Mastercard brand is supported.

Logo

COO 6505 1000 20 1518470

Info

Click to Pay is the online checkout experience built on the latest ecommerce industry specifications – EMV Secure Remote Commerce. To make a purchase, no longer entering of 16-digit primary account numbers, look up passwords or fill out long forms are required. To enjoy this easy, smart and secure online checkout experience simply click to pay with Visa or Mastercard when you see the Click to Pay icon COO 6505 1000 6 8327577 where Visa or Mastercard is accepted.

Type

Payments by eWallet

Further information you will find also on the webpage of Visa (https://www.visa.de/unser-partner-werden/bezahltechnologie/clicktopay-en.html).

Process flow chart

Click to Pay elements are hosted on Computop's credit card form and available out of the box for the merchants who use standard credit card form template (ct_responsive).

Please contact Computop Helpdesk to enable Click to Pay for your MID.

In case you're using custom credit card form template, please follow these samples how to enable Click to Pay elements for your template: Click to Pay for custom templates

There is an option to display a pop-up window with each call, in which buyers can enter their email address for Click To Pay in order to login faster. Please contact our helpdesk to enable this feature.

Template: ct_responsive

COO 6505 1000 16 1518691

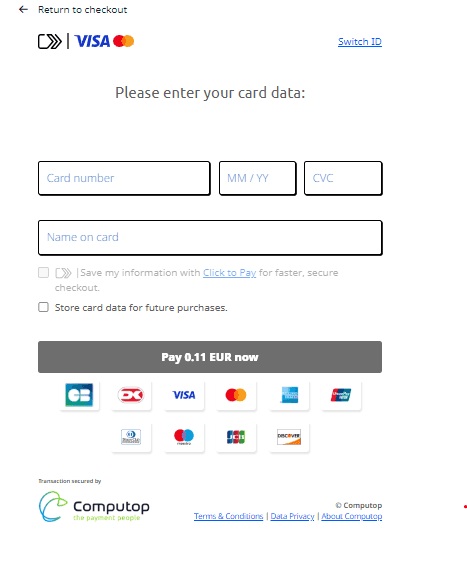

Template: ct_cards_v2

COO 6505 1000 18 1518695

Paygate interface

Definitions

Data formats

Format

Description

alphabetical

alphabetical with special characters

numeric

alphanumeric

ans

alphanumeric with special characters

numeric with special characters

bool

boolean expression (true or false)

fixed length with 3 digits/characters

..3

variable length with maximum 3 digits/characters

enum

enumeration of allowed values

dttm

ISODateTime (YYYY-MM-DDThh:mm:ss)

Abbreviations

Abbreviation

Description

Comment

CND

condition

mandatory

If a parameter is mandatory, then it must be present

optional

If a parameter is optional, then it can be present, but it is not required

conditional

If a parameter is conditional, then there is a conditional rule which specifies whether it is mandatory or optional

Notice: Please note that the names of parameters can be returned in upper or lower case.

Calling the interface

Click to Pay option is available on Computop's credit card form (payssl.aspx) and hosted payment page (paymentPage.aspx). Therefore no separate endpoint is required to call, Click to Pay is reachable within standard Credit card - interface via form.

When card holder decides to use Click to Pay, two transactions are created: in the Click to Pay transaction the required credit card data are obtained first and the actual credit card transaction is then carried out automatically. This takes place via a server-to-server connection and supports all usual credit card transaction options.

The table describes just recommended parameters for Click to Pay processing. It is also possible to include all credit card payment parameters (without credit card data). More information about this you can find within Card processing.

Key

Format

CND

Description

ans..64

Email address of the customer. If provided, Computop Paygate will determine if card holder's Click to Pay profile exists and simplify checkout experience.

Alternatively Email can be provided as a part of customerInfo object. In this case no need to provide it separately.

Capture / Credit / Reversal

Captures, credits and reversals do not refer to the Click to Pay transaction but directly to the credit card transaction. More information about this you can find within Card processing.

Batch processing via the interface

Captures, credits and reversals via batch do not refer to the Click to Pay transaction but directly to the credit card transaction. More information about this you can find within the document Card processing.

Click to Pay for custom templates

1
<html>
2
	<head>
3
		<!-- Viewport -->
4
		<meta name="viewport" content="width=device-width, initial-scale=1.0" />
5

6
		<!-- Title -->
7
		<title>Click to Pay - Example code for XSL file</title>
8

9
		<!-- Embed CSS stylesheet for Click to Pay widgets -->
10
		<link rel="stylesheet" type="text/css" href="css/bootstrap-v5.3.2.min.css"></link>
11
		<link rel="stylesheet" type="text/css" href="css/clicktopay-v3-react.css" />
12
		<link rel="stylesheet" type="text/css" href="css/bootstrap-select.css"></link>
13
		<link rel="stylesheet" type="text/css" href="css/all.min.css"></link>
14

15
		<!-- Embed bootstrap and jQuery library (You can download and store the latest jquery library in your own template images folder as well) -->
16
		<script type="text/javascript" src="https://ajax.googleapis.com/ajax/libs/jquery/3.5.1/jquery.min.js"></script>
17
		<script type="text/javascript" src="js/bootstrap.bundle-v5.3.2.min.js"></script>
18
		<script type="text/javascript" src="js/bootstrap-select.min.js"></script>
19
		<script type="text/javascript" src="js/bootbox-v6.min.js"></script>
20

21
	</head>
22
	<body>
23

24
		<!-- Click to Pay "Switch ID" and "Access your saved Click to Pay cards" link. Depending on whether the customer was recognized or not -->
25
		<!-- We recommend to place it above the credit card input fields -->
26
		<xsl:if test="paygate/useClickToPay = 'true'">
27
			<div class="d-flex justify-content-between align-items-center ctp-access">
28
				<div class="d-flex align-items-center">
29
					<img class="ctp-logo" src="https://src.mastercard.com/assets/img/acc/global/src_standalone_mark_vert_blk.svg"/>
30
					<div class="ctp-divider"/>
31
					<div class="ctp-brands-logo">
32
						<img class="ctp-brand-visa-logo" src="images/brands/visa.svg"/>
33
						<img class="ctp-brand-mastercard-logo" src="images/brands/mastercard.svg"/>
34
					</div>
35
				</div>
36
				<div class="d-flex align-items-center">
37
					<div id="ctpEmail1" class="hidden"/>
38
					<div id="ctpDivider" class="ctp-divider hidden"/>
39
					<div id="ctpSwitchIdLink" class="blue-link"></div>
40
				</div>
41
			</div>
42
			<div id="ctpCardslink" class="d-flex justify-content-end black-link hidden"><xsl:value-of select="paygate/language/ClickToPay/accessSavedCards"/></div>
43
			<div class="d-flex justify-content-center align-items-center text-align-center ctp-info">
44
				<div id="ctpRequestInfo" class="font-size-12">
45
					<div class="padding-2 margin-top-15"><xsl:value-of select="paygate/language/ClickToPay/requestInfo1"/></div>
46
					<div class="padding-2"><xsl:value-of select="paygate/language/ClickToPay/requestInfo2"/></div>
47
					<div>
48
						<img src="images/loader_card_fetch_small_black.gif"></img>
49
					</div>
50
				</div>
51
				<div id="ctpResponseInfo" class="hidden font-size-12"></div>
52
			</div>
53
		</xsl:if>
54

55
		<!-- Click to Pay enrollment checkbox for unrecognized or new user flow -->
56
		<!-- We recommend to place it below the credit card input fields -->
57
		<div class="row ctp-checkbox disabled">
58
			<xsl:if test="paygate/challengeRequestIndicator = 'true'">
59
				<xsl:attribute name="style">
60
					margin-bottom: 5px !important;
61
				</xsl:attribute>
62
			</xsl:if>
63
			<input type="checkbox" id="ClickToPayEnrollment" name="ClickToPayEnrollment" disabled=""></input>
64
			<label for="ClickToPayEnrollment">
65
				<xsl:value-of select="paygate/language/ClickToPay/enrollmentCheckbox1"/><img class="margin-left-2 margin-right-2" src="images/ctp_logo.png"></img><xsl:value-of select="paygate/language/ClickToPay/enrollmentCheckbox2"/>
66
			</label>
67
			<span class="glyphicon glyphicon-info-sign" aria-hidden="true" data-bs-container="body" data-bs-toggle="popover" tabindex="0"></span>
68
			<p class="ctp-mc-agreement"><xsl:value-of select="paygate/language/ClickToPay/mcAgreementInfo"/></p>
69
		</div>
70

71
		<!-- Click to Pay hidden fields, which will contain all necessary data for Click to Pay API calls (Computop sets and handles these values dynamically on server side) -->
72
		<!-- IMPORTANT! Do not change any of these hidden fields names or values -->
73
		<xsl:if test="paygate/useClickToPay = 'true'">
74

75
			<input type="hidden" name="ClickToPayTestaccount"><xsl:attribute name="value"><xsl:value-of select="paygate/testClickToPay"/></xsl:attribute></input>
76
			<input type="hidden" name="ClickToPayActiveEnrollment"><xsl:attribute name="value"><xsl:value-of select="paygate/preselectClickToPayEnrollment"/></xsl:attribute></input>
77
			<input type="hidden" name="ClickToPayDtAutoStart"><xsl:attribute name="value"><xsl:value-of select="paygate/startDigitalTerminalAutomatically"/></xsl:attribute></input>
78
			<input type="hidden" name="ClickToPaySrciTransactionId"><xsl:attribute name="value"><xsl:value-of select="paygate/clickToPaySrciTransactionId"/></xsl:attribute></input>
79
			<input type="hidden" name="ClickToPayMasterCardSrciTransactionId"><xsl:attribute name="value"><xsl:value-of select="paygate/clickToPayMasterCardSrciTransactionId"/></xsl:attribute></input>
80
			<input type="hidden" name="ClickToPayAmexSrciTransactionId"><xsl:attribute name="value"><xsl:value-of select="paygate/clickToPayAmexSrciTransactionId"/></xsl:attribute></input>
81
			<input type="hidden" name="ClickToPaySrciDpaId"><xsl:attribute name="value"><xsl:value-of select="paygate/clickToPaySrciDpaId"/></xsl:attribute></input>
82
			<input type="hidden" name="ClickToPayMasterCardSrciDpaId"><xsl:attribute name="value"><xsl:value-of select="paygate/clickToPayMasterCardSrciDpaId"/></xsl:attribute></input>
83
			<input type="hidden" name="ClickToPayAmexSrciDpaId"><xsl:attribute name="value"><xsl:value-of select="paygate/clickToPayAmexSrciDpaId"/></xsl:attribute></input>
84
			<input type="hidden" name="ClickToPaySrcInitiatorId"><xsl:attribute name="value"><xsl:value-of select="paygate/clickToPaySrcInitiatorId"/></xsl:attribute></input>
85
			<input type="hidden" name="ClickToPayMasterCardSrcInitiatorId"><xsl:attribute name="value"><xsl:value-of select="paygate/clickToPayMasterCardSrcInitiatorId"/></xsl:attribute></input>
86
			<input type="hidden" name="ClickToPayAmexSrcInitiatorId"><xsl:attribute name="value"><xsl:value-of select="paygate/clickToPayAmexSrcInitiatorId"/></xsl:attribute></input>
87
			<input type="hidden" name="ClickToPayIdentityValue"><xsl:attribute name="value"><xsl:value-of select="paygate/clickToPayIdentityValue"/></xsl:attribute></input>
88
			<input type="hidden" name="ClickToPayDpaLocale"><xsl:attribute name="value"><xsl:value-of select="paygate/clickToPayDpaLocale"/></xsl:attribute></input>
89
			<input type="hidden" name="ClickToPayTransactionAmount"><xsl:attribute name="value"><xsl:value-of select="paygate/clickToPayTransactionAmount"/></xsl:attribute></input>
90
			<input type="hidden" name="ClickToPayTransactionCurrencyCode"><xsl:attribute name="value"><xsl:value-of select="paygate/clickToPayTransactionCurrencyCode"/></xsl:attribute></input>
91
			<input type="hidden" name="ClickToPayPostURL"><xsl:attribute name="value"><xsl:value-of select="paygate/clickToPayPostURL"/></xsl:attribute></input>
92
			<input type="hidden" name="ClickToPayOtpAttempts"></input>
93

94
			<input type="hidden" name="ClickToPayIdTokens"></input>
95
			<input type="hidden" name="ClickToPayIdToken"></input>
96
			<input type="hidden" name="ClickToPayCorrelationId"></input>
97
			<input type="hidden" name="ClickToPayDigitalCardId"></input>
98
			<input type="hidden" name="ClickToPayMaskedEmail"></input>
99
			<input type="hidden" name="ClickToPayMaskedNumber"></input>
100

101
			<input type="hidden" name="ClickToPayMasterCardIdTokens"></input>
102
			<input type="hidden" name="ClickToPayMasterCardIdToken"></input>
103
			<input type="hidden" name="ClickToPayMasterCardCorrelationId"></input>
104
			<input type="hidden" name="ClickToPayMasterCardDigitalCardId"></input>
105
			<input type="hidden" name="ClickToPayMasterCardMaskedEmail"></input>
106
			<input type="hidden" name="ClickToPayMasterCardMaskedNumber"></input>
107

108
			<input type="hidden" name="ClickToPayAmexIdTokens"></input>
109
			<input type="hidden" name="ClickToPayAmexIdToken"></input>
110
			<input type="hidden" name="ClickToPayAmexCorrelationId"></input>
111
			<input type="hidden" name="ClickToPayAmexDigitalCardId"></input>
112
			<input type="hidden" name="ClickToPayAmexMaskedEmail"></input>
113
			<input type="hidden" name="ClickToPayAmexMaskedNumber"></input>
114

115
			<!-- Embed all needed Click to Pay styles and scripts (Please do not change any of these source paths!!!) -->
116
			<link rel="stylesheet" type="text/css" href="css/modaldcfstyle.css" />
117
			<script data-main="scripts/main" src="js/jose.js"></script>
118

119
			<!-- VISA SDK -->
120
			<script type="text/javascript">
121
				<xsl:choose>
122
					<xsl:when test="paygate/testClickToPay = 'true'">
123
						<xsl:attribute name="src">https://sandbox.secure.checkout.visa.com/checkout-widget/resources/js/src-i-adapter/visaSdk.js</xsl:attribute>
124
					</xsl:when>
125
					<xsl:otherwise>
126
						<xsl:attribute name="src">https://assets.secure.checkout.visa.com/checkout-widget/resources/js/src-i-adapter/visaSdk.js</xsl:attribute>
127
					</xsl:otherwise>
128
				</xsl:choose>
129
			</script>
130

131
			<!-- MasterCard SDK -->
132
			<script type="text/javascript">
133
				<xsl:choose>
134
					<xsl:when test="paygate/testClickToPay = 'true'">
135
						<xsl:attribute name="src">https://sandbox.src.mastercard.com/sdk/srcsdk.mastercard.js</xsl:attribute>
136
					</xsl:when>
137
					<xsl:otherwise>
138
						<xsl:attribute name="src">https://src.mastercard.com/sdk/srcsdk.mastercard.js</xsl:attribute>
139
					</xsl:otherwise>
140
				</xsl:choose>
141
			</script>
142

143
			<!-- AMEX SDK -->
144
			<script type="text/javascript">
145
				<xsl:choose>
146
					<xsl:when test="paygate/testClickToPay = 'true'">
147
						<xsl:attribute name="src">https://qwww.aexp-static.com/akamai/remotecommerce/scripts/amexSDK-1.0.0.js</xsl:attribute>
148
					</xsl:when>
149
					<xsl:otherwise>
150
						<xsl:attribute name="src">https://www.aexp-static.com/akamai/remotecommerce/scripts/amexSDK-1.0.0.js</xsl:attribute>
151
					</xsl:otherwise>
152
				</xsl:choose>
153
			</script>
154

155
			<script type="text/javascript" src="js/bootbox-v6.min.js"></script>
156
			<script type="text/javascript" src="js/clicktopay-v2.1.js"></script>
157

158
		</xsl:if>
159

160
	</body>
161
</html>
