Customer Data Storage

Introduction

The idea of Paygate is to store customer data like credit card data, billing / shipping address in a secure way within Paygate and to re-use these data based on CustomerId.

The Customer Data Storage (CDS) refers to a Scope which can be used to share the same CDS data with multiple of your MerchantIds.

After Customer Data Storage has been activated for your MerchantId within Paygate:

• initial usage / consumer has no data stored yet

  • you can send CustomerId in Paygate-request

  • the consumer will be asked on Hosted Payment Page / Credit Card Form (PaySSL) whether the payment data should be stored

  • payment request is completed

  • and you will be notified for updates on Customer Data Storage

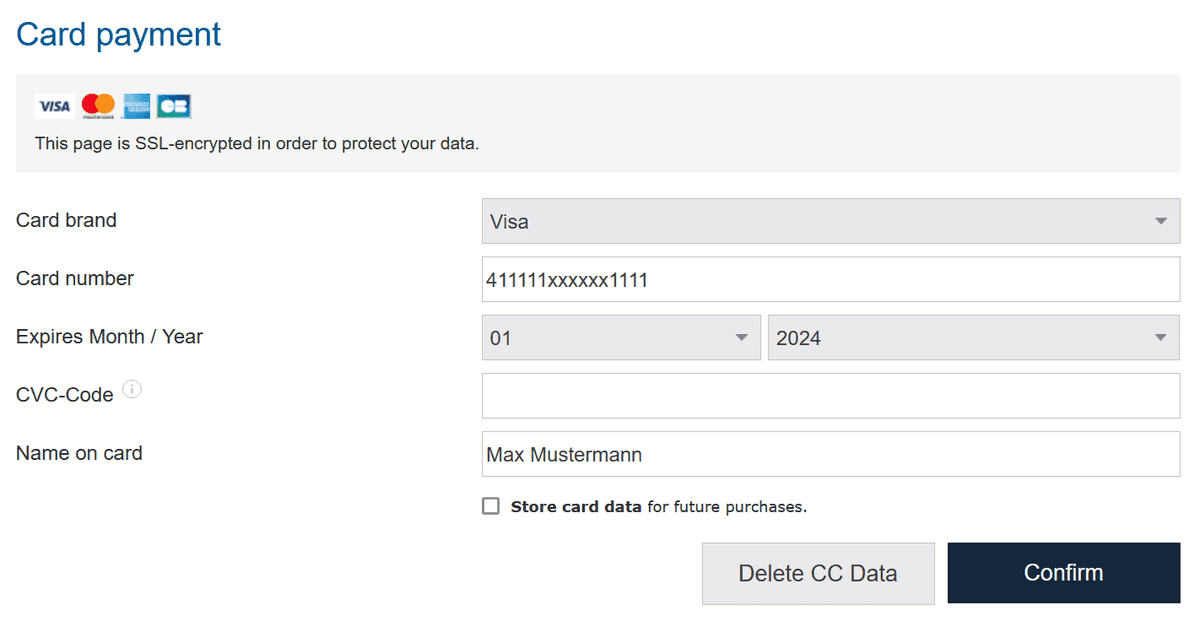

• subsequent usage / consumer has already data stored

  • you still send CustomerId in Paygate-request

  • the credit card data will be prefilled on Hosted Payment Page / Credit Card Form (PaySSL)

  • the consumer needs to add CVC, only – as CVC must not be stored at any time

  • payment request is completed

We can setup a notification URL provided by you. For each change of the Customer Data Storage (CDS) Data you will get a notification message containing the CustomerReferenceId. This can then be used to request these data from CDS.

Currently storage of credit card data is supported, only. Support for other payment data and other consumer data may be added in a later stage.

Sequence Diagram

The Customer Data Storage is addressed via CustomerId and is embedded into Paygate payment processing.

Paygate interface

Definitions

Data formats

Abbreviations

Notifications on Customer Data Storage updates

With activation of Customer Data Storage (CDS) by Computop Helpdesk you will need to provide an URL to receive notifications for CDS updates. The data will be sent as POST-request and data are part of request-body.

Notifications for CDS-updates are not encrypted, because they do not contain sensitive data.

 pls. be prepared to receive additional parameters at any time and do not check the order of parameters

 the key (e.g. MerchantId, RefNr) should not be checked case-sentive

Customer Data Storage (CDS) inquiries – GetDetails

CDS request

CDS inquiries within Paygate return stored CDS data for a given CustomerId or CustomerReferenceId.

https://www.computop-paygate.com/customer.aspx

The following table describes the encrypted payment request parameters:

Parameters for CDS inquiries via socket connections

CDS response

The following table describes the result parameters with which the Computop Paygate responds to your system

pls. be prepared to receive additional parameters at any time and do not check the order of parameters

the key (e.g. MerchantId, RefNr) should not be checked case-sentive

Response parameters in the case of CDS inquiries via socket connections

CustomerInfos details (Type: CreditCard), Base64 decoded

1
{
2
  "CustomerReferenceId": "5912cfe4abbb453499120bf71f85be6f",
3
  "CustomerId": "123123",
4
  "MID": "Your_MerchantId",
5
  "Scope": "Your_Scope",
6
  "Created": "2023-12-21T12:10:58.087",
7
  "Changed": "2023-12-21T12:10:58.087",
8
  "CustomerDataInfos": [
9
    {
10
      "CCNrMasked": "411111xxxxxx1111",
11
      "Expiry": "202701",
12
      "Holder": "John Doe",
13
      "Brand": "VISA",
14
      "PCNr": "0605262127687111",
15
      "Type": "CreditCard",
16
      "CustomerDataId": "9de5132163cf4c838ffd7695e2d6b542",
17
      "CustomerReferenceId": "5912cfe4abbb453499120bf71f85be6f",
18
      "Scope": "Your_Scope",
19
      "Active": true,
20
      "LastUsed": "2023-12-21T12:10:58.087",
21
      "Created": "2023-12-21T12:10:58.087",
22
      "Changed": "2023-12-21T12:10:58.087"
23
    }
24
  ]
25
}

CDS GetDetails request / response, sample

1
Plain Request Data before encryption:
2
MerchantId=Your_MerchantId&EventToken=GetDetails&CustomerId=123123
3

4
Request with encrypted Len / Data:
5
customer.aspx?MerchantID=Your_MerchantId&Len=89&Data=fb0f6ee9876fea46a955f793eb3dada7c316aa2a25334716e82c4ca92fe726c818463b88bca2b98b3724e560dcc6bf8528ac66c97ddad557432b9abdd87e598793ed2cd281b3258f4677444a4e0e494e338d3f281f82c0b4a71746e79f191e36
6

7
Response with plain data:
8
Status=OK&Code=00000000&CustomerId=123123&CustomerReferenceId=5912cfe4abbb453499120bf71f85be6f&CustomerInfos=eyJDdXN0b21lclJlZmVyZW5jZUlkIjoiNTkxMmNmZTRhYmJiNDUzNDk5MTIwYmY3MWY4NWJlNmYiLCJDdXN0b21lcklkIjoiMTIzMTIzIiwiTUlEIjoiamtpbGxtZXJfdGVzdCIsIlNjb3BlIjoiamtpbGxtZXJfdGVzdCIsIkNyZWF0ZWQiOiIyMDIzLTEyLTIxVDEyOjEwOjU4LjA4NyIsIkNoYW5nZWQiOiIyMDIzLTEyLTIxVDEyOjEwOjU4LjA4NyIsIkN1c3RvbWVyRGF0YUluZm9zIjpbeyJDQ05yTWFza2VkIjoiNDExMTExeHh4eHh4MTExMSIsIkV4cGlyeSI6IjIwMjQwMSIsIkhvbGRlciI6ImFzIGRhc2QiLCJCcmFuZCI6IlZJU0EiLCJQQ05yIjoiMDYwNTI2MjEyNzY4NzExMSIsIlR5cGUiOiJDcmVkaXRDYXJkIiwiQ3VzdG9tZXJEYXRhSWQiOiI5ZGU1MTMyMTYzY2Y0YzgzOGZmZDc2OTVlMmQ2YjU0MiIsIkN1c3RvbWVyUmVmZXJlbmNlSWQiOiI1OTEyY2ZlNGFiYmI0NTM0OTkxMjBiZjcxZjg1YmU2ZiIsIlNjb3BlIjoiamtpbGxtZXJfdGVzdCIsIkFjdGl2ZSI6dHJ1ZSwiTGFzdFVzZWQiOiIyMDIzLTEyLTIxVDEyOjEwOjU4LjA4NyIsIkNyZWF0ZWQiOiIyMDIzLTEyLTIxVDEyOjEwOjU4LjA4NyIsIkNoYW5nZWQiOiIyMDIzLTEyLTIxVDEyOjEwOjU4LjA4NyJ9XX0=
9

10
CustomerInfos Base64-decoded:
11
{
12
  "CustomerReferenceId": "5912cfe4abbb453499120bf71f85be6f",
13
  "CustomerId": "123123",
14
  "MID": "Your_MerchantId",
15
  "Scope": "Your_Scope",
16
  "Created": "2023-12-21T12:10:58.087",
17
  "Changed": "2023-12-21T12:10:58.087",
18
  "CustomerDataInfos": [
19
    {
20
      "CCNrMasked": "411111xxxxxx1111",
21
      "Expiry": "202701",
22
      "Holder": "John Doe",
23
      "Brand": "VISA",
24
      "PCNr": "0605262127687111",
25
      "Type": "CreditCard",
26
      "CustomerDataId": "9de5132163cf4c838ffd7695e2d6b542",
27
      "CustomerReferenceId": "5912cfe4abbb453499120bf71f85be6f",
28
      "Scope": "Your_Scope",
29
      "Active": true,
30
      "LastUsed": "2023-12-21T12:10:58.087",
31
      "Created": "2023-12-21T12:10:58.087",
32
      "Changed": "2023-12-21T12:10:58.087"
33
    }
34
  ]
35
}

Customer Data Storage (CDS) inquiries – Delete

CDS request

CDS inquiries within Paygate can delete stored CDS data for a given CustomerId or CustomerReferenceId.

https://www.computop-paygate.com/customer.aspx

The following table describes the encrypted payment request parameters:

Parameters for CDS inquiries via socket connections

CDS response

The following table describes the result parameters with which the Computop Paygate responds to your system

pls. be prepared to receive additional parameters at any time and do not check the order of parameters

the key (e.g. MerchantId, RefNr) should not be checked case-sentive

Response parameters in the case of CDS inquiries via socket connections

CDS Delete request / response, sample

1
Plain Request Data before encryption:
2
MerchantId=Your_MerchantId&EventToken=Delete&Type=CreditCard&CustomerId=123123
3

4
Request with encrypted Len / Data:
5
customer.aspx?MerchantID=Your_MerchantId&Len=105&Data=fb0f6ee9876fea46a955f793eb3dada7c316aa2a25334716a536631bea13cce510fb7a1a56e24d876e714ba96978f97319132f7e74107871feb6cda906601cde234084083f75eb4b4fd521f3596430cb5c627b4874101ecabfde860934bbd5da62fc286af93b1c65248
6

7
Response with plain data:
8
CustomerId=123456xxxx&Type=CreditCard&Code=00000000&Description=Deleted&Status=OK

Supported templates

Currently these templates are supporting

• storing credit card data in Customer Data Storage – if no data are stored for the specific CustomerId yet

• prefilling

Template names:

• ct_responsive

• ct_cards_v1

Samples

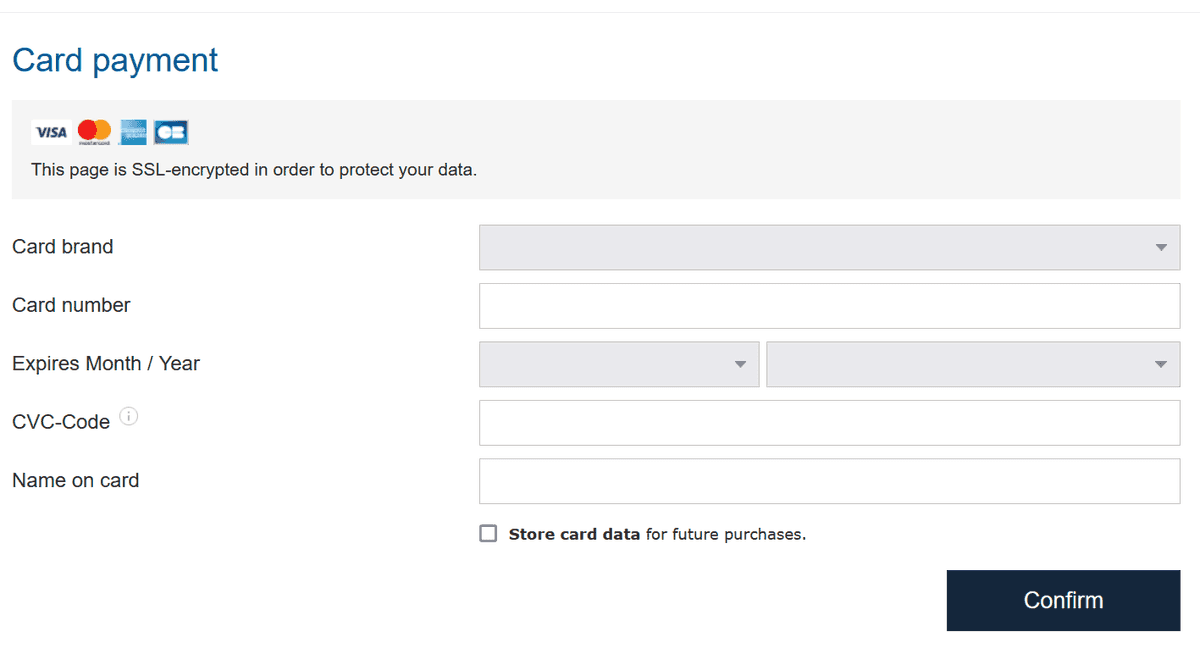

Customer enters credit card data initially

• Customer enters credit card data initially

• and agrees to store these data for future purchases
